Pepperl Fuchs KFD2-UT2-Ex1 Temperature Converter 1-channel isolated barrier

Pepperl Fuchs KFD2-UT2-Ex1 Temperature Converter 1-channel isolated barrier

Pepperl fuchs KFD2-UT2-Ex1 Temperature Converter 1-channel isolated barrier

Features

• 1-channel isolated barrier
• 24 V DC supply (Power Rail)
• Thermocouple, RTD, potentiometer or voltage input
• Current output 0/4 mA ... 20 mA
• Sink or source mode
• Configurable by PACTware
• Line fault (LFD) and sensor burnout detection
• Up to SIL 2 acc. to IEC 61508/IEC 61511
Pepperl fuchs KFD2-UT2-Ex1 Temperature Converter 1-channel isolated barrier

Function

This isolated barrier is used for intrinsic safety applications. It is designed to connect RTDs, thermocouples, or potentiometers in the hazardous area, and provide a proportional 0/4 mA ... 20 mA signal to the safe area. The barrier offers 3-port isolation between input, output, and power supply.

Pepperl fuchs KFD2-UT2-Ex1 Temperature Converter 1-channel isolated barrier

A removable terminal block K-CJC-** is available for thermocouples when internal cold junction compensation is desired. A fault is indicated by a red flashing LED per NAMUR NE44 and user-configured fault outputs. The unit is easily programmed with the PACTware™ configuration software. A collective error messaging feature is available when used with the Power Rail system.

Pepperl fuchs KFD2-UT2-Ex1 Temperature Converter 1-channel isolated barrier

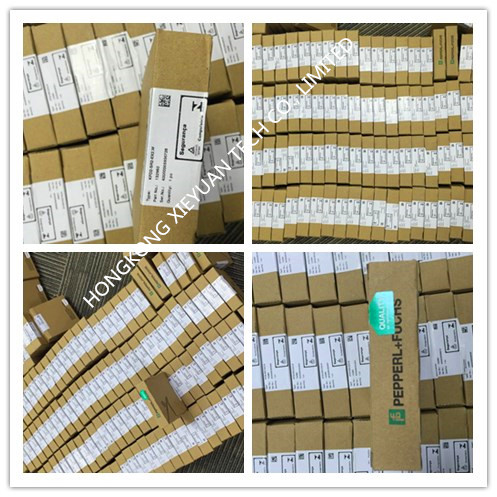

Large quantity of Pepperl+Fuchs Isolated Barriers K-Systems on stock
